Case: 31 March 2018

Summary

An open cellular cloud event that followed a frontal passage

Description

This was an open cell event that followed a frontal passage during the first half of this day (06 UTC). Low-level winds were moderate (10-20 kts) and from the west following the frontal passage over Graciosa island. Radar observations at the ENA main site suggested relatively intense precipitation in the cells that overpassed the ENA main site just after midday. The melting level was relatively high (2.5 km AGL), though cloud echo tops were typically observed as being 1 km above the melting level for the event.

Available assets

Standard ARM profiling assets, SEVIRI. SACR. RLPROF-FEX

Critical period: 12:00-18:00

Advection of precipitating open cells that passed over the ENA main site

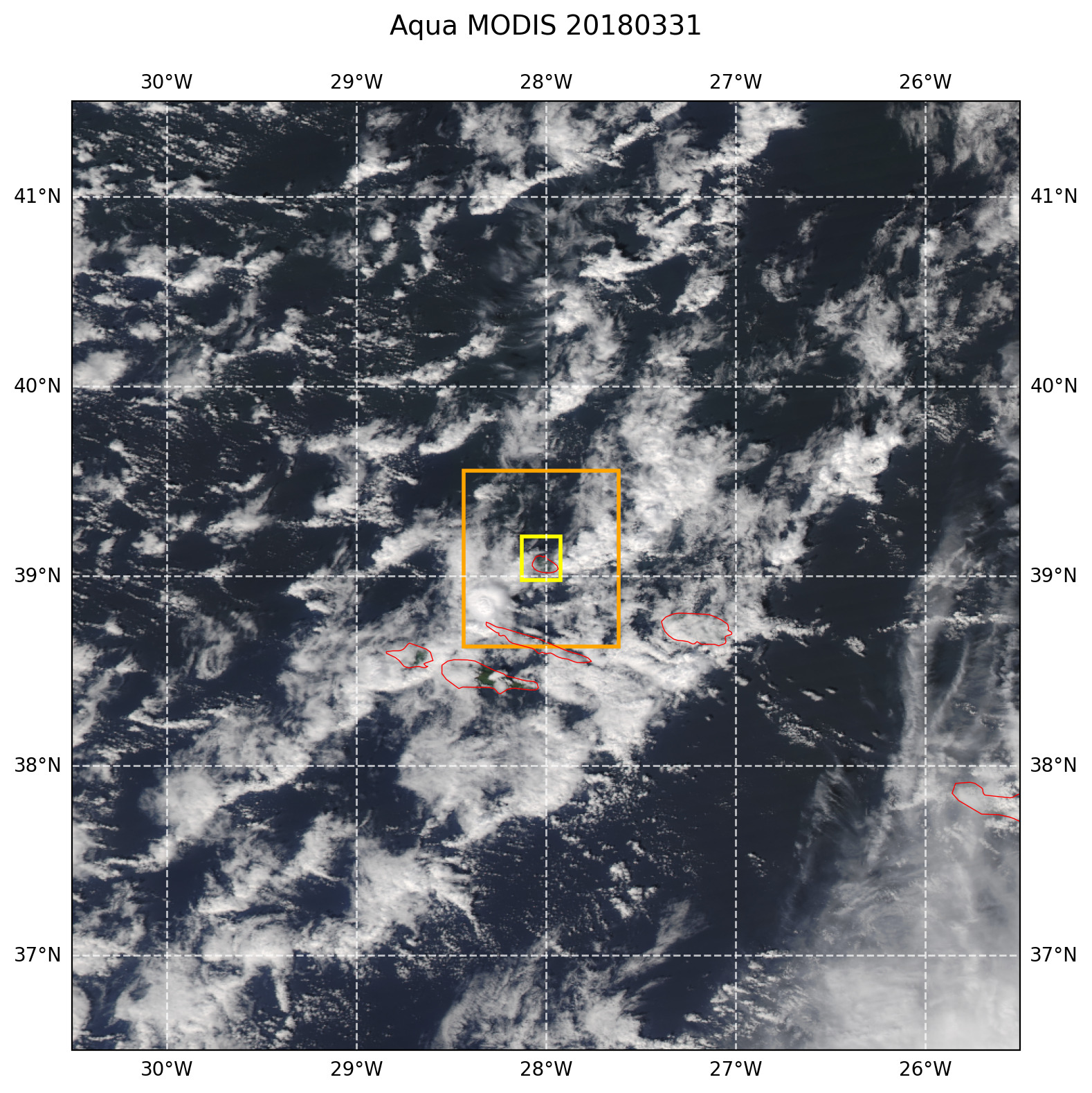

True color MODIS AQUA — Figure 34 True color afternoon MODIS AQUA image with overlaid LES domains. The image domain corresponds to the size of the model forcing domain.
