Case: 22 December 2020

Summary

Widespread open-cellular cumulus event with northerly flow

Description

A widespread open-cell cumulus event with modest (25–30 kt) northerly low-level flows. Cloud echo tops observed near or slightly above the ambient melting level (approximately 1.5–2.0 km AGL). The cloud echo tops and the melting level were both observed to decrease throughout the event.

Available assets

Standard ARM profiling assets, SEVIRI

Critical period: 09:00–15:00

Precipitating cumulus over the ENA main site

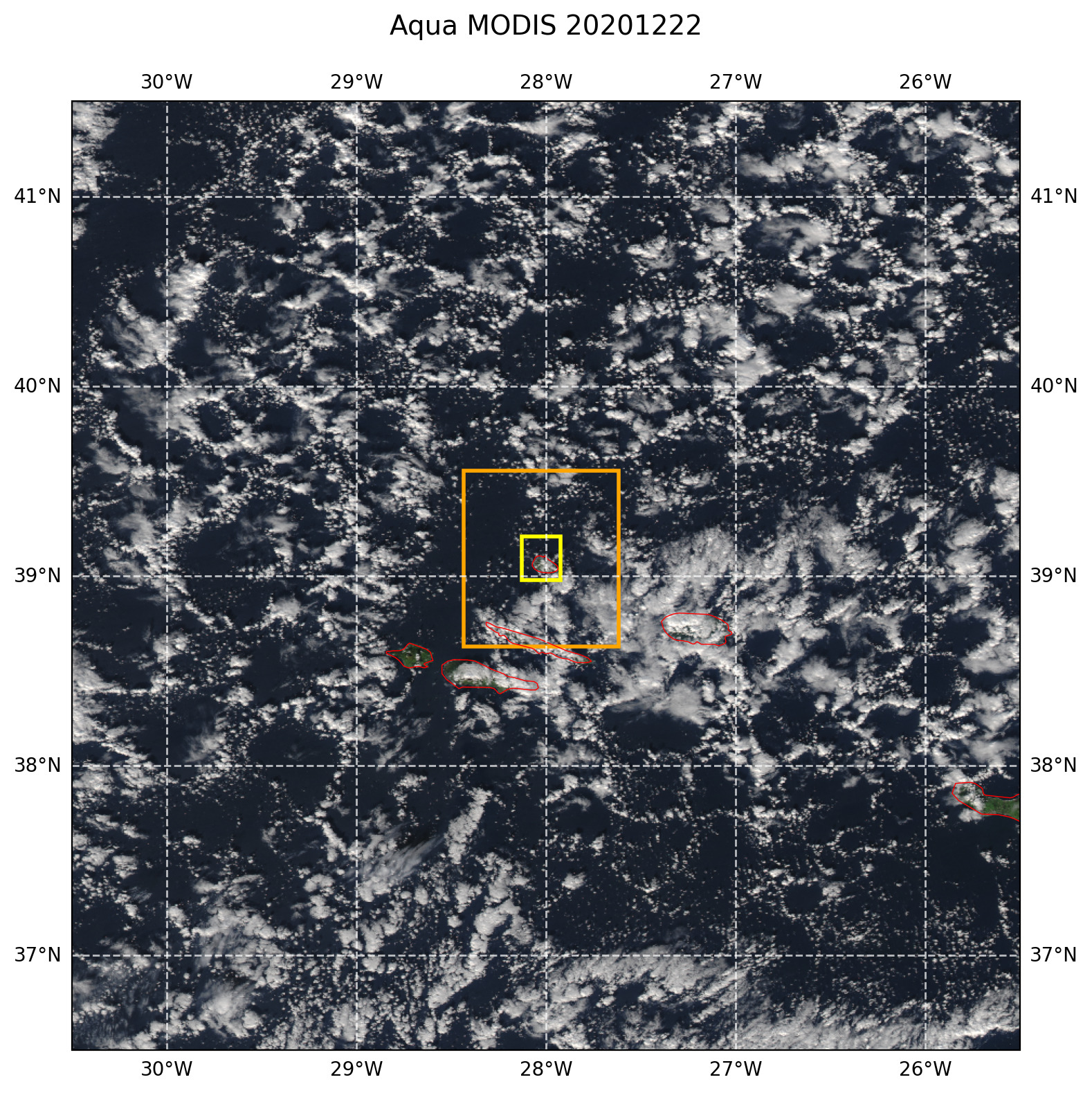

True-color MODIS Aqua — Figure 42 True-color afternoon MODIS Aqua image with overlaid LES domains. The image area corresponds to the 5° region sampled for the larger forcing option. The yellow and orange boxes correspond to the sizes of the 25 km and 102 km LES domains, respectively.
